Since 1996, Troika Systems has led the way in designing and manufacturing 2D and 3D scanning microscopes. Our award-winning AniCAM HD™ Plus and SurfaceCAM HD™ systems are trusted worldwide for anilox, gravure, and flexoplate quality control.
With thousands of installations globally, Troika helps printers reduce waste, cut setup time, and improve efficiency, supporting both productivity and sustainability. To date, our technology has contributed to saving over 207 million square meters of print industry waste.
Partner with Troika Systems for advanced inspection solutions, reliable support, and a smarter, greener future.
Products

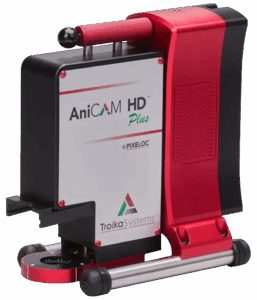

AniCAM HD™ PLUS
The AniCAM HD™ Plus is the latest innovation in pre-press inspection, delivering fast and accurate measurements for Anilox rolls, Gravure cylinders, and Flexoplates. Engineered to reduce make-ready waste and setup time, it ensures over 90% first-time setup accuracy.
Powered by PIXELOC™ technology and advanced vibration compensation, the system provides precise, repeatable results—no vibration table required. Combined with intuitive software featuring auto-focus and automated setup, AniCAM HD™ Plus ensures consistent performance across operators and production sites.
AniCAM HD™ Plus Feature

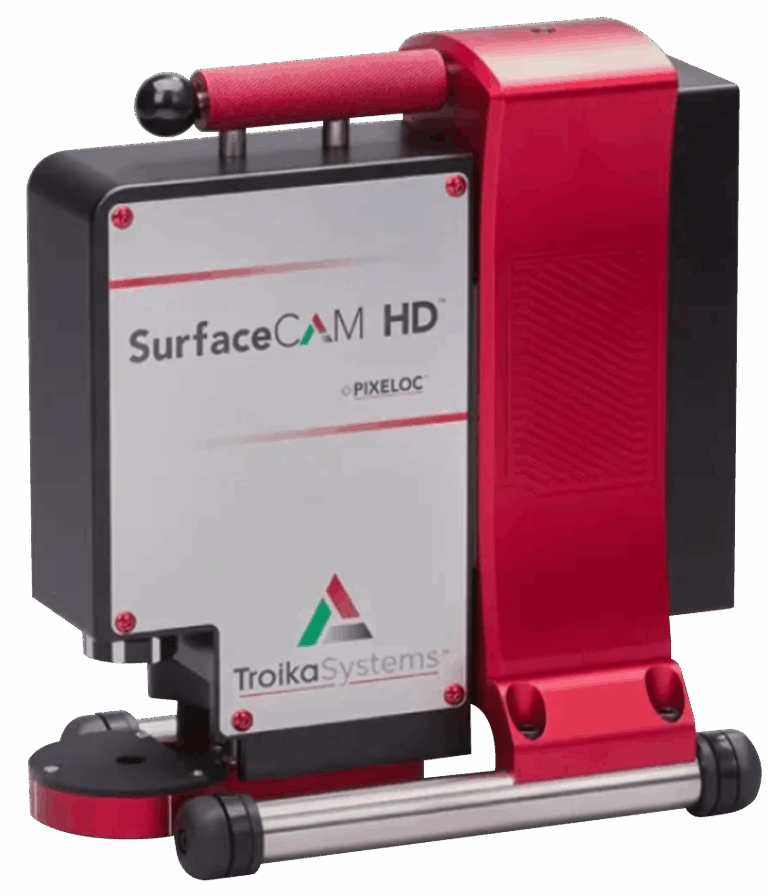

The SurfaceCAM HD™ provides precise 3D measurement for embossing and low-screen rolls. Streamline your press setup, reduce waste, and increase profitability. By accurately measuring your inventory, our software identifies potential issues and ensures consistent volume across all rolls, minimizing setup time, eliminating unnecessary ink adjustments, and enhancing operational efficiency.
SurfaceCAM HD™ - Key Feature
SurfaceCAM HD™
MagneCAM HD™ PLUS
Precision 3D Inspection Anywhere
MagneCAM HD™ Plus feature
SOFTware options
Anilox Quality Control
Delivers precise anilox roll inspection for consistent ink transfer and optimized quality. Integrated with AMS for efficient multi-site inventory management, reducing waste and ensuring consistency
Gravure Quality Control
Provides precise cylinder inspection and links with CMS to track cylinder condition, reducing inconsistencies and improving print quality through effective monitoring and maintenance planning.
Flexoplate Quality Control
Flexoplate QC provides precise inspection and measurement of flexographic plates, ensuring optimal quality control. It helps improve ink transfer, minimise waste, and enhance print consistency by accurately monitoring plate condition and performance.
Ra – Rz Surface Roughness Control
Surface Roughness software ensures consistent quality with features like Kurtosis for measuring peak sharpness, Peaks per CM for surface consistency, Average Roughness for precise texture control, and Skewness for assessing surface symmetry and bearing properties.
What is PIXELOC™ Technology?
PIXELOC™ – Precision Control
Technology by Troika Systems
PIXELOC™ is Troika’s patented closed-loop positional feedback system, built exclusively into the AniCAM HD™ and AniCAM HD™ Plus.
Key Benefits of PIXELOC™
Ultra-High Precision
Controls movement in 0.25µm increments, compared to traditional 1µm steps—ensuring exceptionally accurate depth and volume measurements.
System Interoperability
Delivers consistent measurements across multiple AniCAM units in different locations or teams.
Error-Free Measurement
Starts from a fixed, known datum point to eliminate mechanical drift and discrepancies.
Long-Term Reliability
Designed for stable, dependable performance over years of continuous quality control.
Consistent Results Across Devices
Enables reliable, repeatable results—regardless of the system or operator—by removing mechanical variation.
Exclusive & Innovative
PIXELOC™ is unique to Troika Systems and sets a new standard for precision in the printing industry.
